Tandberg TR-1020 Capacitor R&R

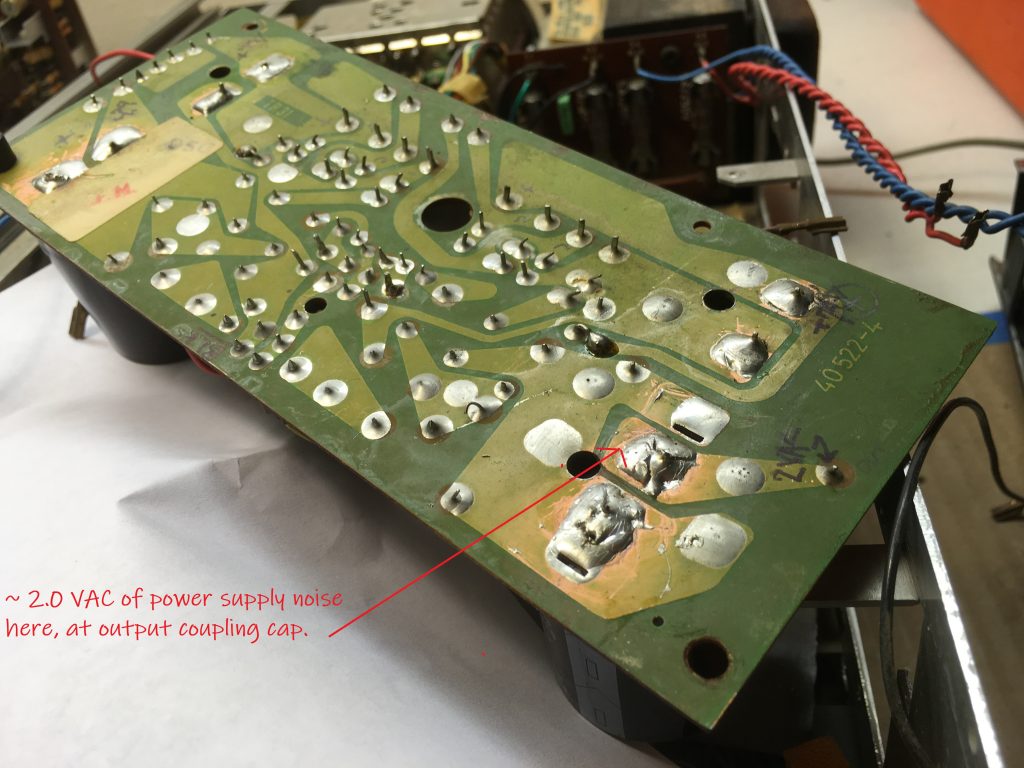

TR-1020 power supply / Capacitor board. My beloved Tandberg TR-1020 developed a buzz in the right channel.
Tandberg TR-1020

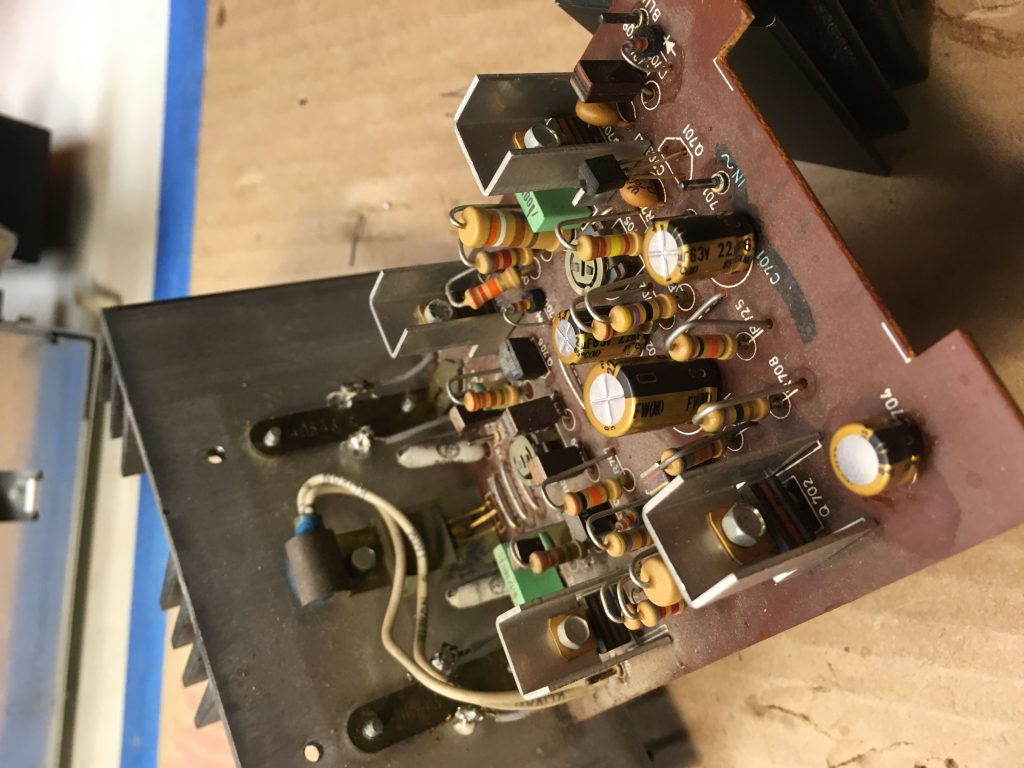

Power amp module (1 of 2).

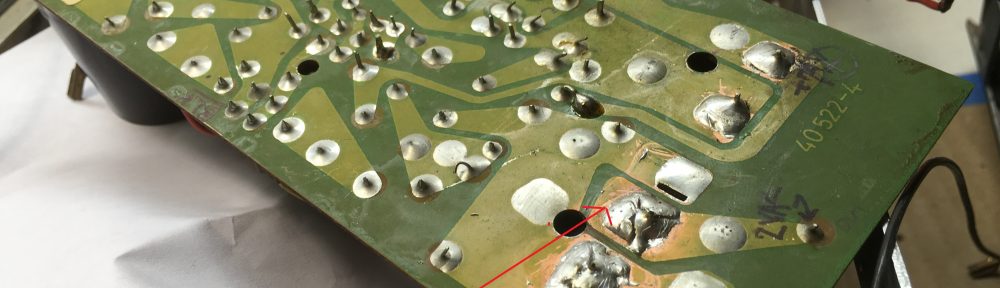

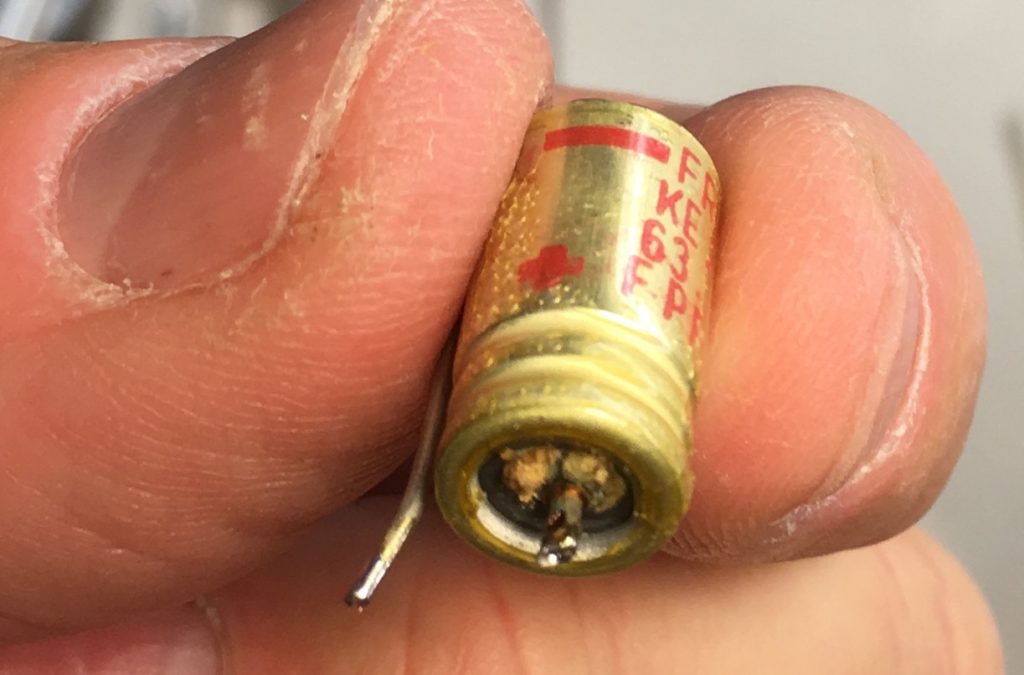

Evidence of electrolytic capacitor leakage. This is part of the input filter/coupling stage.
Caps replaced. Not a lot of troubleshooting here! Replaced all eight electrolytics on two power modules using Gold series Panasonics from Digikey. Rework is easy once you get in there. Really sweet Norwegian engineering!! 🙂

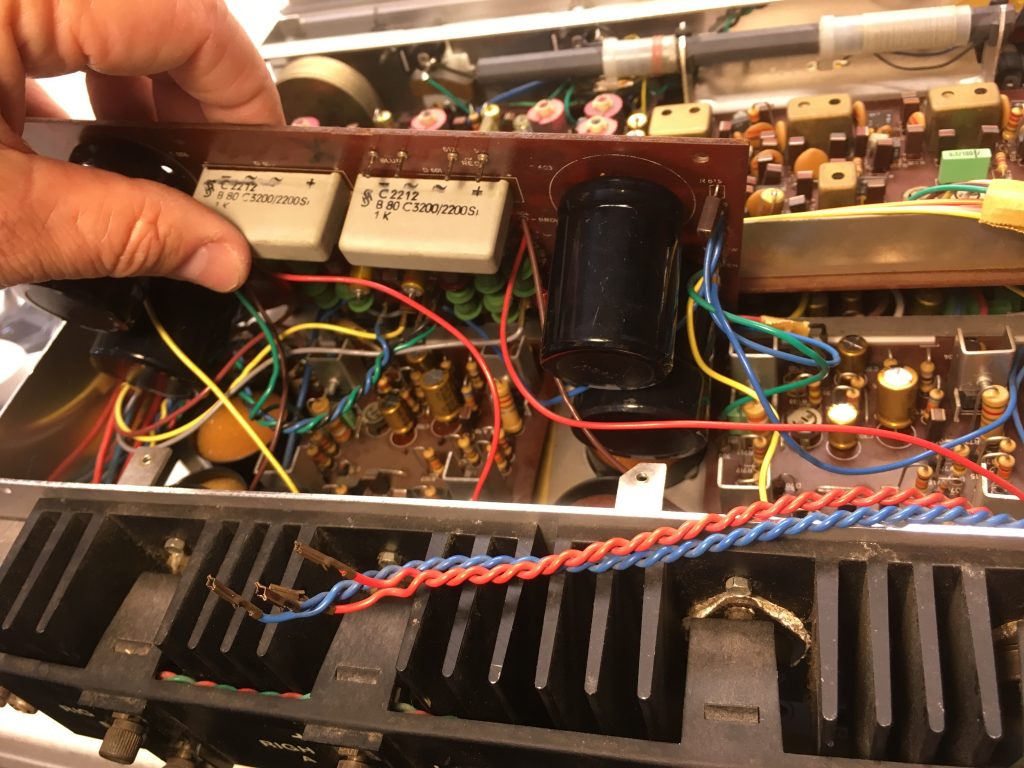

Re-assy: Board wiring is well marked. Receiver works perfect!!

Schematic link:
https://skogstad.org/documents/tandberg/tandberg.shtml
